Prerequisites

For this assignment you need to know:

1. Programming basics (preferably Python)

   Especially using an IDE to debug and run your code such as Vim, Visual Studio Code, Sublime Text 3, and more

2. The use of some basic Linux commands

   If you are not very familiar with Linux and Python, you can

   1. Watch the introductory video for this assignment. (Video has some audio problems but there are captions available. You can find it in the schedule of the course.) From the video, you can learn how to use the awk command. You may wish to apply it in tasks.


   2. Additional information is provideed supporting documents.

   3. Some code snippets from above document are available in an archive for easier use.

Learning outcomes

At the end of this assignment, students should be able to

1. Get to know some tools useful to process, analysis and visualize data
2. Select the most suitable tool for them
3. Develop codes to process to do data processing, compute basic measurement and plot some graphs
4. Get to know CSV files.

Introduction

This assignment contains three tasks:

• Task 1: Programming tools
• Task 2: Processing CSV data using awk
• Task 3: Processing throughput and latency datas

For each task, complete the exercises and write the report. In addition to task-specific questions, describe your solution, including samples of produced data (few lines). Besides, you can add scripts/programs as a zip archive (submission is instructed separately).

Always make sure you have included all details in your answers and have answered every item.

Note: You can also perform task 2 and 3 with your own computer (real or virtual) downloading the files needed.

Recommendation: There are several cheat sheet availables that you can consult related to the tools (awk, Python, R) and libraries (pandas, matplotlib) with the most useful information related to syntax, functions, variables, conditions, formulas, and more.

Task 1: Programming tools

In the first task, answer the following questions:

1. What is the function of the command awk? What can we do with awk (operation, useful for, programming)? How to use it?

2. What are the differences between Python and R? Mention three cases when Python is better than R as well as three cases when R is better than Python

   HINT: Consider in terms of programming experience, applications, plotting, or more.

3. According to the previous question, select the most suitable programming language for you and name three notable libraries for data visualization (statistical plotting) and three for data science (data processing and analysis)

Task 2: Processing CSV data using awk

For this task, you need to compute statistical values from a large (462 MiB) CSV file called log_tcp_complete which reports every TCP connection that has been tracked by the tool called tsat (more information in the documentation).

! The file is a space-separated CSV file with 130 columns and 886467 records (where the first line refers to the header)

The course has its folder in the Aalto Linux computers located in the directory: /work/courses/unix/T/ELEC/E7130/. Following this path, it has the next directory general/trace/tstat/2017_04_11_18_00.out/ to find the file for this task.

Note: You may need to type the command kinit before to get access to the folder.

Provide the following answers (in addition to the description of your solution):

1. How can you peek at a file if it is too large to fit into memory?
2. Print the first line (i.e. headers of the columns 3, 7, 10, 17, 21, 24)
3. Calculate the average of the columns 3, 7, 10, 17, 21, 24
4. Calculate the percentage of records where column10/column7 exceeds a) 0.01, b) 0.10, c) 0.20 (in other words, the value in column 10 is divided by the value in column 7 for each line and the result must exceed the values indicated)
5. Calculate the maximum of each column: 3, 9, 17, 23, 31

HINT: Use the command awk (awk cheatsheet) to process the information requested from the second exercise. Moreover, you can use the environment variable FNR as a condition, which refers to the record number (typically the line number) in the current file.

Task 3: Processing throughput and latency data

You must develop a code to process two CSV files: one of latency data and another related to throughput data, to compute some basic measurements and plot basic graphs using Python or R as a first approaching to processing and analysis data.

Note: The files can be found in the directory: /work/courses/unix/T/ELEC/E7130/general/basic_data. You can download

3.1 Latency data using ping

• The file ping_data.csv contains the latency data with the following information:

  Datetime	Server	Transmitted packets	Successful packets	Avg RTT (ms)
  1656437401.124931	195.148.124.36	5	5	0.92
  1656438001.463204	195.148.124.36	5	0	inf
  1656438602.081979	195.148.124.36	5	3	0.949
  …	…	…	…	…

  NOTE: Every row or line of the CSV file refers every ping executed to send 5 ICMP echo requests (packets) to the server 195.148.124.36 every 10 minutes. Moreover, there are some packet losses to be consider during the computing and plotting.

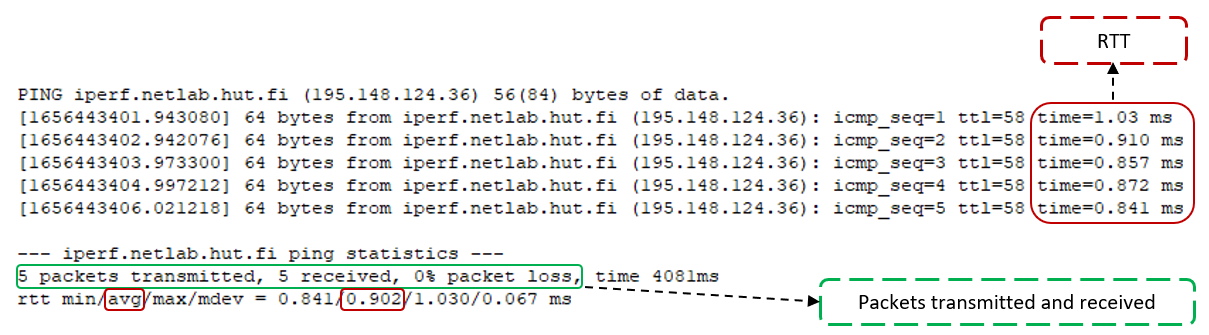

  The CSV file was created from ping outputs extracting the useful parameters in terms of latency and connectivity (as shown in the figure below).

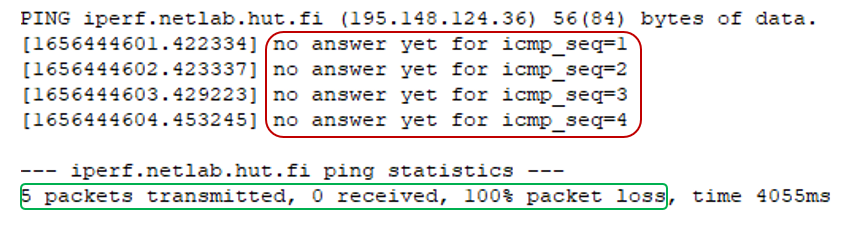

  On the other hand, the next figure shows the scenario when there are packet losses during the transmission, which is considered important in terms of measurement and analysis, where it is defined as ‘inf’ in the CSV file when all packets sent were lost, or there may be a value in the ‘Avg RTT (ms)’ column but not all packets were sent successfully.

  ! You must be aware that there are pings without any answer or with some losses



• You need to complete the following points:

  1. Load the CSV into a DataFrame and change the timestamp to date format.
  2. Plot the average RTT over a time series from the provided CSV file as a first approach to the data and analysis of this.
  3. Generate another CSV file or dataframe with the values calculated of the average of successful RTTs, the maximum of RTTs, and the percentage of packet loss every hour.
  4. Plot another time series to observe the behavior of the RTTs (average and maximum) according to the measurements calculated in each hour.
  5. Can you make any conclusions of stability and latency based on data?

HINT: The column ‘Avg RTT (ms)’ only considers the successful RTT

3.2 Throughput data using iperf3

• The CSV file called iperf_data.csv contains the throughput data both normal and reverse direction, that is, client-server (client sends, server receives) and server-client (server sends, client receives) respectively; in order to compute and plot the measurements requested.

  Datetime	Server	Port	Type	Mode	Sent bitrate (bps)	Sent bytes	Retransmissions
  1656437461	ok1.iperf.comnet-student.eu	5206	TCP	0	141364340.31318378	176706680	23
  1656437472	ok1.iperf.comnet-student.eu	5201	TCP	1	620303404.7144992	775452064	13
  -1	-1	-1	-1	-1	-1	-1	-1
  …	…	…	…	…	…	…	…

  NOTE: Every row of the file defines an iperf3 executed every hour either the mode normal or reverse. Besides, the column ‘Mode’ defines the direcion where ‘0’ refers the normal mode (client-server) and ‘1’ defines the reverse mode (server-client).

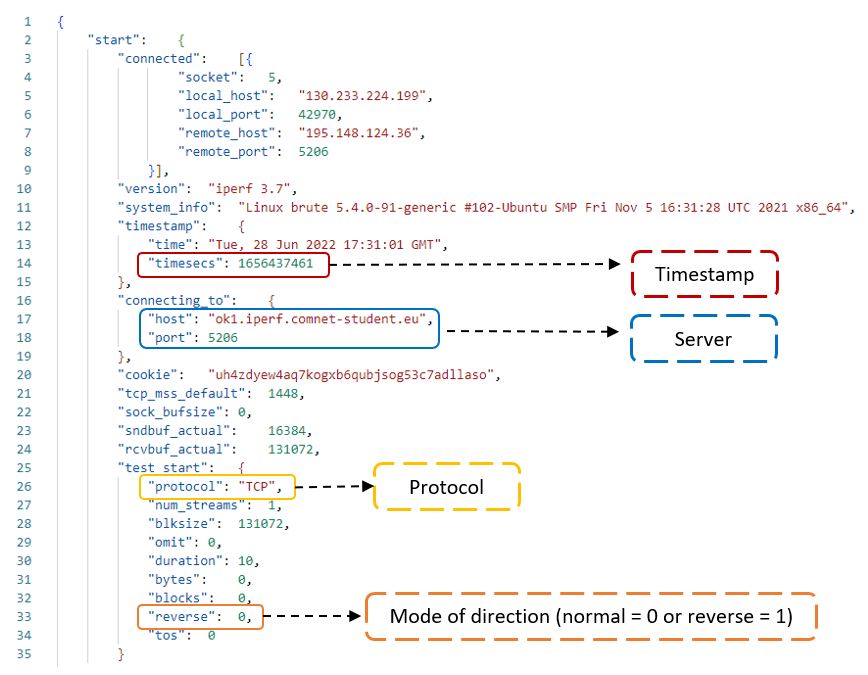

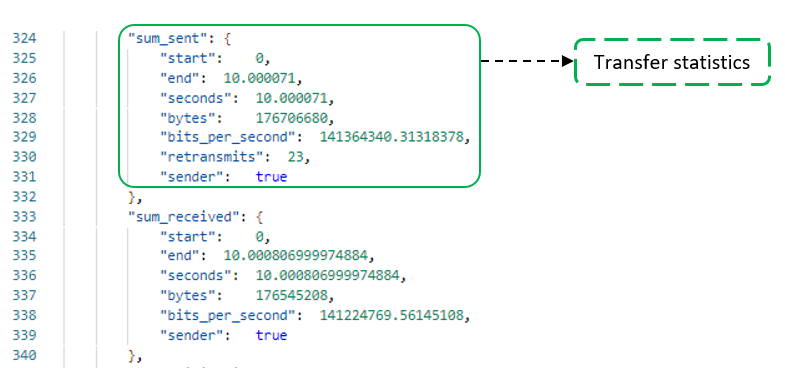

  The CSV file was created from JSON files created by after running iperf3 extracting the useful parameters (as shown in the figure below) related to throughput and connectivity.





  It is important to mention there are sometimes issues related to the connection between client and server causing an error or failure (as shown in the next figure) to measure the throughput which is represented with values ‘-1’ in the CSV file.

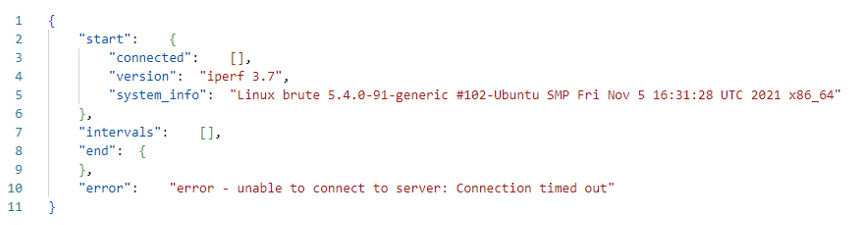

  You must be aware that there are JSON files with an error as the next sample.



• You need to complete the following exercises:

  1. Load the CSV into a DataFrame and change the timestamp to date format.
  2. Remove the rows with values “-1” and classify the mode sent based on the column ‘Mode’, where ‘0’ is normal (client-server) and ‘1’ refers to reverse (server-client)
  3. Plot comparing bitrate and TCP retransmissions over a time series (one for normal direction and one for reverse)
  4. Create a scatter plot to observe the relationship between TCP retransmissions and bitrate (one for normal direction and one for reverse)
  5. Can you make any conclusions of stability based on data and relationship between bitrate and TCP retransmissions?

Hint: As recommendation, you need to handle the data set using Dataframes with either Python or R due to in it will be useful when you have to work in terms of machine learning.

Grading standard

To pass this course, you need to achieve at least 15 points in this assignment. Moreover, if you submit the assignment late, you can get a maximum of 15 points.

You can get up to 30 points for this assignment:

Task 1

• Explain the questions related to the programming tools. (3p)

Task 2

• Successfully use the right way to peek on file with good explanation. (1p)
• Successfully print the first line based on the columns requested (1p)
• Successfully calculate the averages of the given columns. (2p)
• Successfully calculate the percentages of the records. (2p)
• Successfully find the largest values. (2p)

Task 3

•  3.1 Latency data using ping


• 3.2 Throughput data using iperf3
  • Handle the CSV data into a DataFrame and change to date format (1p)
  • Filter data properly (2p)
  • Calculate the measurements requested (2p)
  • Plot a time series and a scatterplot comparing bitrate and TCP retransmissions (4p)
  • Analyse stability (bonus 2p)

The quality of the report (bonus 2p)

The instruction of assignment

For the assignment, your submission must contain (Please do not contain original data in your submission):

• A zip file that includes your codes and scripts.
• A PDF file as your report.

Regarding the report, your report must have:

• A cover page indicating your name, student ID and your e-mail address.
• Solution to each problem.
• An explanation of each problem, explain how you solved it and why you did it.
